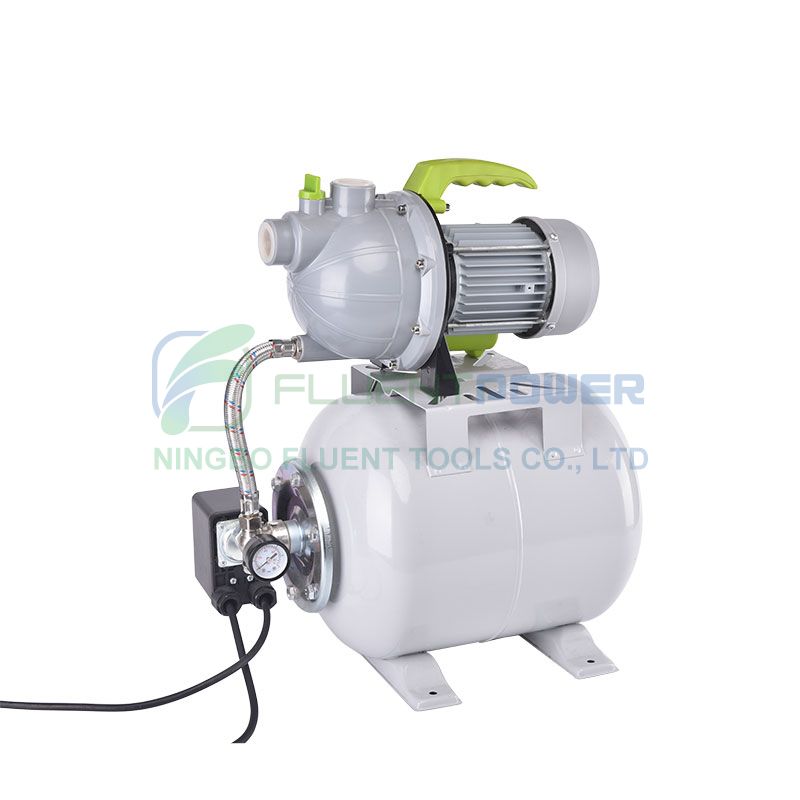

Boost Pressure System with Plastic Housing FGPXXX8JC

FLUENTPOWER® is the professional water pump manufacturer and specialized in producing and developing domestic water pumps. The FGPXXX8JC boost pressure system is the integrated system combined by two parts - the Boost Pressure System with Plastic Housing FGPXXX8JC and the domestic water tank. The system allows you store the rainwater or well water as service water in the low-maintenance EPDM membrane built in the water tank. The volume and the material of the water tank is allowed to be fully customized to meet your different domestic needs. The practical pressure gauge is installed to show the current pressure in the storage tank.The drain plug is reserved on the water tank which allows you drain the tank immediately to prevent the damage of freezing weather. Multiple power version of this system is offered - from 600W up to 1200W. In order to create maximum durability, the motor is under the protection of the integrated thermal circuit breaker from overload.  The FGPXXX8JC boost pressure system is the right solution to your domestic watering problem in your daily life.

1.Product Parameter (Specification)

FGPXXX3JBC	600W	230V/50Hz	2800L/H	35M	7M	1.2-3.0	ROHS LVD GS CE EMC	1"	H07RNF3G 1.0mm2x1.2
	800W	230V/50Hz	3000L/H	40M	8M
	1000W	230V/50Hz	3200L/H	44M	8M
	1200W	230V/50Hz	3500L/H	46M	8M

2.Product Feature And Application
